SURVEY: Small Arms & Heavy Weapons - Nov 2014 - Updated 160509

[von Klinkerhoffen]

USA
Anti-tank gun
90mm (3.5") M1A1 (the one mounted on a cruciform) plus M4 tractor to tow




USA
Artillery - Howitzer
105mm M2A1

German
Flak/anti-tank
Flak 36 88mm

German
Anti-tank
Pak 44 128mm Kanone 43 bzw.44

[Rubicon Models]

With the 250/251 expansion projects moving forward and queuing up for mould making, we now have
some time to really looking into wrapping up some open-end 3D drawings.  Here is one of them:






Enjoy!

[Pinky]

It's a nice design, but I'd hope your first foray into artillery isn't the Pak 36.  It was well and truly obsolete before most of the vehicles you have depicted in kit form saw service.

[ultravanillasmurf]

Looks good. Does the bottom of the gun shield (below the axle) fold up for travel?

I do agree with Pinky that with your current range being mainly late War, that this might be something for when you have an early war range.

[Rubicon Models]

It is basically a work-in-progress to add "base and wheels" to our existing weapons... then adding crew to them.
So there is no particular order of what to begin with... for the Germans, it will be the PaK 36 and the PaK 75...
may be some AA guns later!

[chrismanu87]

Great idea!

[Swamprat33]

Hi Rubicon, I have just got a third Opel Blitz to convert into a flak wagon. I was hoping to use a 37mm Flak 36 or flak 43.
The 20mm flak in all variants is available from a number of sources, but, unfortunately no seems to do a 37mm flak in 1/56 scale.

This might be a good place to start.

Cheers
Tim

[bluewolf]

German 150 mm railway guns.

http://kinkyasiangirls.pw/wp-content/uploads/2016/03/tumblr_npaypito5o1s6zihxo1_500.jpg


Thor!
http://informedconsentnow.tripod.com/sitebuildercontent/sitebuilderpictures/karlgerat040.jpg

[ultravanillasmurf]

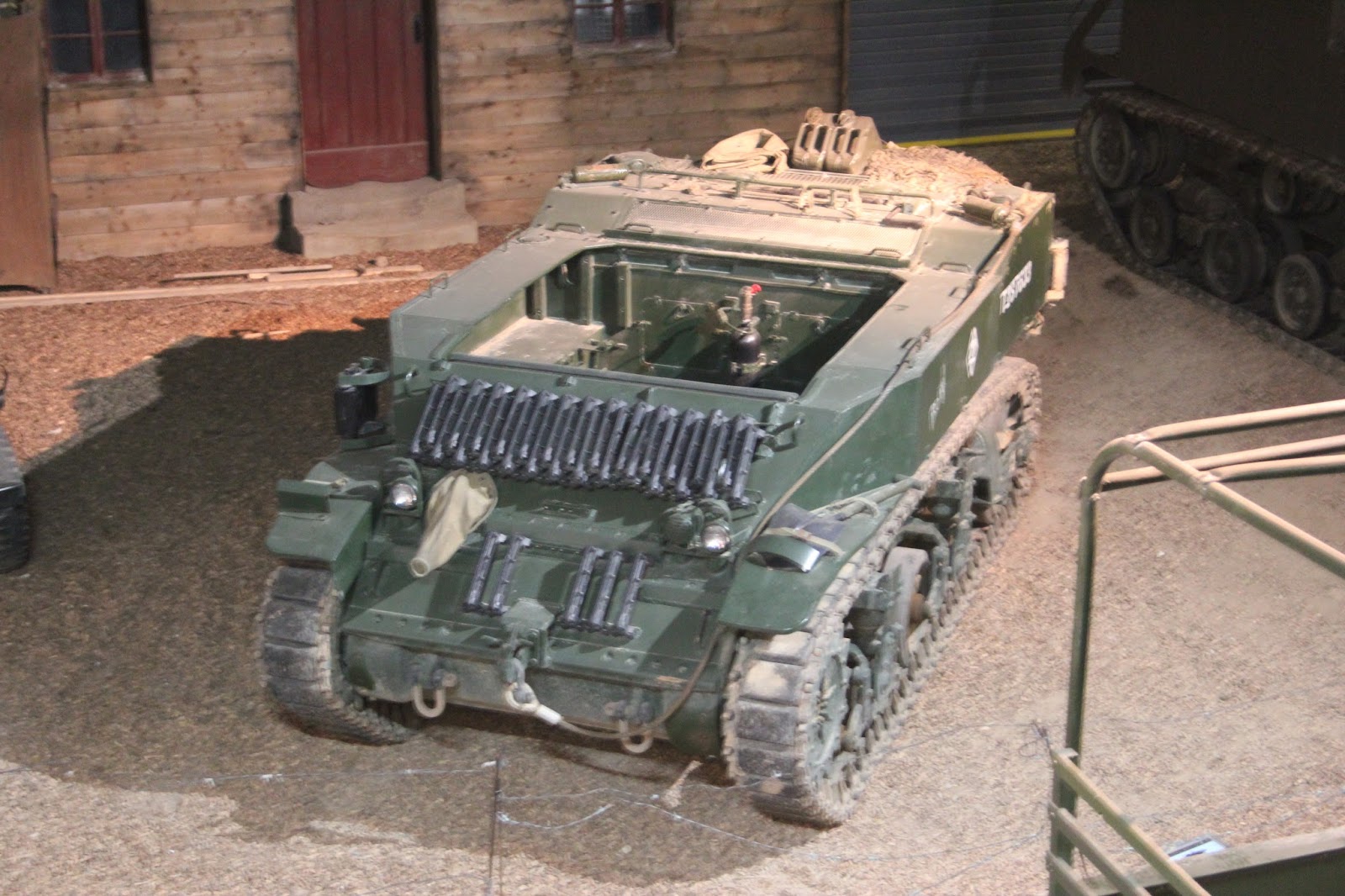

Just to push the 17 pounder AT gun, there is the M5 Stuart Gun Tractor, which should be a simple variant on your existing M5 kit.



Some more photographs here:http://ultravanillasmurf.blogspot.co.uk/2017/01/m5-combat-vehicle-stuart-gun-tractor.html

[ripley]

Neat . You would need a new upper hull or a template on where to cut . A couple of front seats , transmission , steering levers and maybe a drive shaft and cover . Or did they leave the raised floor in this

[ultravanillasmurf]

The deck where the turret fits is separate, the M8/M5A1 has two decks.

The rest of the exterior looks the same. Will need the grousers (as mentioned in the stowage thread).

I could not see into the crew area.

[ultravanillasmurf]

Pinky: is there an entry on this vehicle in the Tankograd book?

[ripley]

You could probabaly make you own groucers out of Plastruct T channel . Cut to length and add a support end . Just lots and lots cutting

[Pinky]

Pinky: is there an entry on this vehicle in the Tankograd book?

No, it only covers the basic M5/M5A1.

Did this gun tractor tow the 17-pdr?  I thought they used Crusader tractors for that.

[ultravanillasmurf]

Did this gun tractor tow the 17-pdr?  I thought they used Crusader tractors for that.

I remember seeing it said that it was used to tow 17 pounders while researching it, but cannot remember where.

I also cannot remember what it said at Duxford. There is the possibility it was in the post war section (in my defence you can see the sectioned Jagdpanther next to it).
